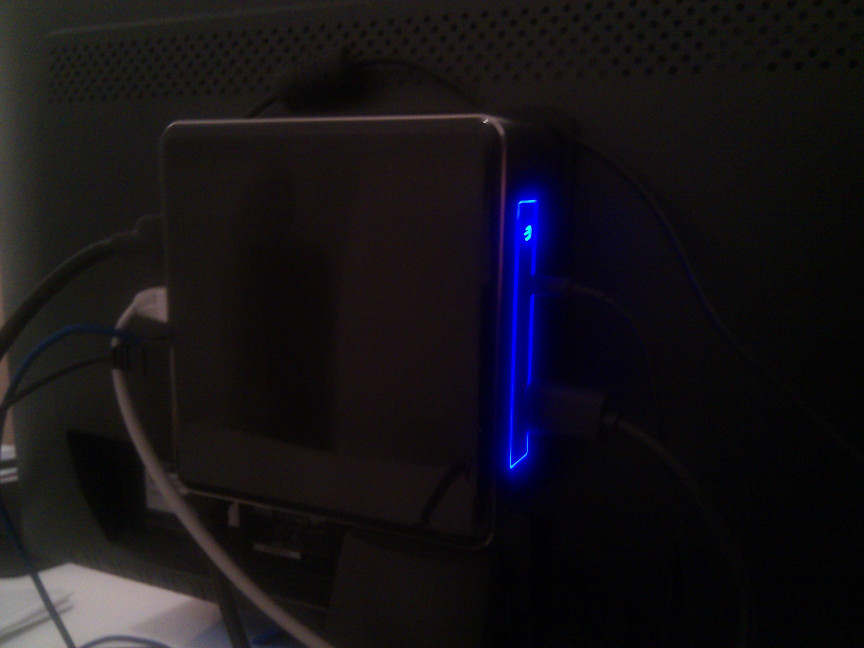

Running Fedora 28 on an Intel NUC7i3BNH
The NUC comes without RAM and storage with the following specs:
- Intel(R) Core(TM) i3-7100U Processor @ 2.4GHz
- 1 x Gigabit ethernet interface (Intel)
- 1 x Dual Band Wi-Fi (Intel)
- 1 x Bluetooth 4.2
- 4 x USB 3.0 ports
- 1 x USB 3.1 / DisplayPort via USB Type-C Connector
- 1 x HDMI port
- 1 x Combined audio port
- 1 x Consumer Infrared Sensor
- 1 x Micro SDXC Card Reader
- DMICS Digital Microphone Array
To which I added:
- 2 x Crucial 8GB DDR4 2400 MT/s PC4-19200 SRx8, 260-Pin SODIMMs
- 1 x 120GB Kingston 2.5" SATA 3 SSD
I just moved the SSD from the BRIX into the NUC.
Specs
$ lscpi
00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v6/7th Gen Core Processor Host Bridge/DRAM Registers (rev 02)
00:02.0 VGA compatible controller: Intel Corporation HD Graphics 620 (rev 02)
00:08.0 System peripheral: Intel Corporation Xeon E3-1200 v5/v6 / E3-1500 v5 / 6th/7th Gen Core Processor Gaussian Mixture Model
00:14.0 USB controller: Intel Corporation Sunrise Point-LP USB 3.0 xHCI Controller (rev 21)
00:14.2 Signal processing controller: Intel Corporation Sunrise Point-LP Thermal subsystem (rev 21)
00:16.0 Communication controller: Intel Corporation Sunrise Point-LP CSME HECI #1 (rev 21)
00:17.0 SATA controller: Intel Corporation Sunrise Point-LP SATA Controller [AHCI mode] (rev 21)
00:1c.0 PCI bridge: Intel Corporation Sunrise Point-LP PCI Express Root Port #1 (rev f1)
00:1c.5 PCI bridge: Intel Corporation Sunrise Point-LP PCI Express Root Port #6 (rev f1)
00:1c.7 PCI bridge: Intel Corporation Sunrise Point-LP PCI Express Root Port #8 (rev f1)
00:1f.0 ISA bridge: Intel Corporation Intel(R) 100 Series Chipset Family LPC Controller/eSPI Controller - 9D4E (rev 21)
00:1f.2 Memory controller: Intel Corporation Sunrise Point-LP PMC (rev 21)
00:1f.3 Audio device: Intel Corporation Sunrise Point-LP HD Audio (rev 21)
00:1f.4 SMBus: Intel Corporation Sunrise Point-LP SMBus (rev 21)
00:1f.6 Ethernet controller: Intel Corporation Ethernet Connection (4) I219-V (rev 21)
3a:00.0 Network controller: Intel Corporation Wireless 8265 / 8275 (rev 78)
3b:00.0 Unassigned class [ff00]: Realtek Semiconductor Co., Ltd. RTS5229 PCI Express Card Reader (rev 01)
$ lscpu
Architecture: x86_64
CPU op-mode(s): 32-bit, 64-bit
Byte Order: Little Endian
CPU(s): 4
On-line CPU(s) list: 0-3
Thread(s) per core: 2
Core(s) per socket: 2
Socket(s): 1
NUMA node(s): 1
Vendor ID: GenuineIntel
CPU family: 6
Model: 142
Model name: Intel(R) Core(TM) i3-7100U CPU @ 2.40GHz
Stepping: 9
CPU MHz: 1001.878
CPU max MHz: 2400.0000
CPU min MHz: 400.0000
BogoMIPS: 4800.00
Virtualization: VT-x
L1d cache: 32K
L1i cache: 32K
L2 cache: 256K
L3 cache: 3072K
NUMA node0 CPU(s): 0-3
Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx pdpe1gb rdtscp lm constant_tsc art arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc cpuid aperfmperf tsc_known_freq pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 sdbg fma cx16 xtpr pdcm pcid sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand lahf_lm abm 3dnowprefetch cpuid_fault epb invpcid_single pti ssbd ibrs ibpb stibp tpr_shadow vnmi flexpriority ept vpid fsgsbase tsc_adjust bmi1 avx2 smep bmi2 erms invpcid mpx rdseed adx smap clflushopt intel_pt xsaveopt xsavec xgetbv1 xsaves dtherm arat pln pts hwp hwp_notify hwp_act_window hwp_epp
Issues
Overall everything seems to work fine, with just one minor exception with the
Wi-Fi.
I don't use the Wi-Fi but just tried it out and saw that it would quickly stop
working. Turned out to be due to my AP running in 40MHz mode, switching it back
to its default of 20MHz seemed to fix that.
See here for one possible explanation.
Andrew Clayton; Sun Aug 12th, 2018
